Saunum Air L 10 Package
Saunum Air L 10 Package
Couldn't load pickup availability
- Revolutionary Air Mixing Technology – No more cold feet! No other sauna heater has Saunum's patented air blending system, which mixes cooler, oxygen-rich air from the floor with hot, oxygen-poor air off the ceiling and distributes it throughout the room for a more even temperature and better breathability. Saunum ensures that heat and oxygen are more consistent from head to toe.
- Scandinavian Design – With its elegant black steel finish, Saunum combines contemporary Scandinavian design and premium-quality materials.
- Massive Stone Capacity – Stones are the heart of a Nordic sauna. Greater stone capacity results in softer, more even heat, and can produce more luxurious steam. The Air L boasts a massive 180 pound stone capacity.

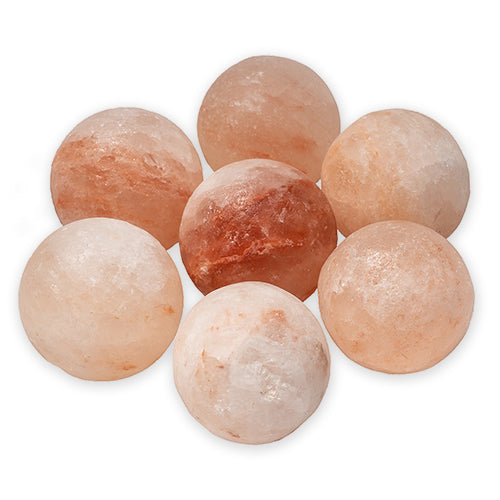

- Himalayan Salt Reservoir – Himalayan Salt Spheres are positioned within the air stream so that salt ions are propelled throughout the sauna to deliver health benefits more effectively.
- For sauna rooms from 283 to 494 cu. ft.

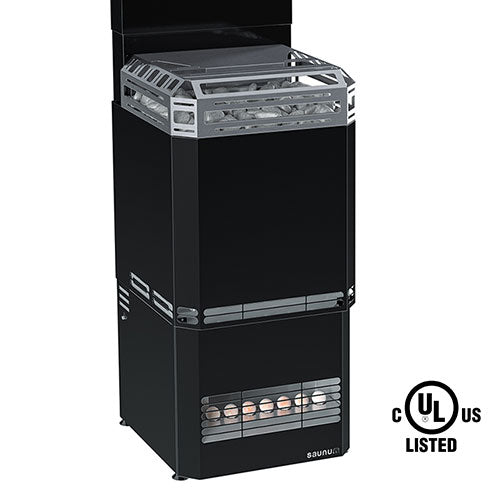

- UL-listed for safety.

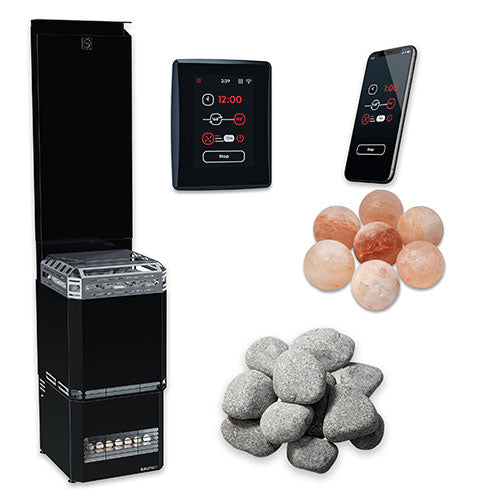

The Saunum Air L 10 Sauna Heater Package comes complete with the Air L 10 Sauna Heater, AirIQ Wi-Fi Control, Sauna Stones, and Himalayan Salt Spheres. Air L 10 is a unique heater with a sauna climate regulating system that is ideal for creating an extraordinary sauna session in a more intensively used sauna. The large stone volume and the patented air-blending system ensure exceptional steam that is soft and long, and evenly distributed throughout the sauna.
Thanks to the oxygen-rich air, breathing is easier, and the negative salt ions from the spheres are beneficial for your respiratory system and skin. This 9.8kW heater package is designed for sauna rooms from 283 to 494 cubic feet (CF).
|
Model |
AIR L 10 PKG |
|
Heat Equalizing System |
|
|
Model |
AIR L 10 |
|
Certification/Global Safety Rating |
UL (Underwriters Laboratories) |
|
Heat/Steam Equalizer Module |
3-Speeds, Whisper-Quiet Operation |
|
Ceiling Hot Air Intake |
17.72" x 4" (450.09 x 101.6mm) |
|
Cool Air Intake Type |
Adjustable Valve, Side-Mounted, 12" (304.8mm) Off Floor |
|
Cool Air Intake Size |
2" x 2.75" (50.8 x 69.85mm) |
|
Blended Air Output |
4.31" x 14.13" (109.47 x 358.9mm) |
|
Himalayan Salt and Aroma Tray Type |
Removable, Slotted |
|
Himalayan Salt and Aroma Tray Size |
16.5" x 4.5" (419.1 x 111.76mm) |
|
Sauna Heater System |
|
|
Model |
AIR L 10 |
|
Certification/Global Safety Rating |
UL (Underwriters Laboratories) |
|
Room Size |
283-494 cu. ft. (8-14 Cubic Meters) |
|
Wattage Rating |
9900 |
|
Operating Voltage |
240V |
|
Phase |
Single |
|
Amperage |
41.25 |
|
Circuit Breaker |
See Installation and Operation Manual |
|
Wire Size to Power Unit |
#6 +N + G |
|
Minimum Ceiling Height |
73" (1850 mm) |
|

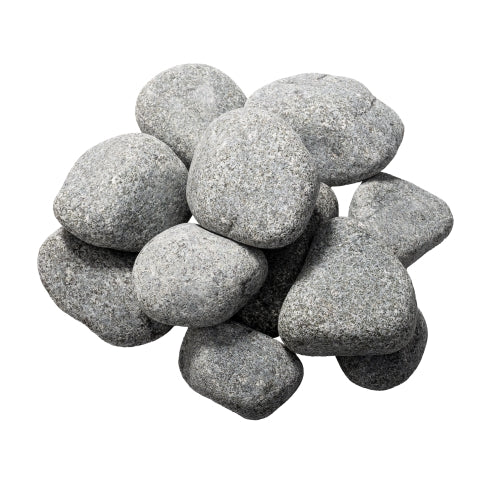

Stone Capacity |
180 lbs (80 kg) |
|
Stone Size |
2" - 4" (5-10 cm) |
|
Heater Width |
18.3" (465 mm) |
|
Heater Depth |
18.1" (460 mm) |
|
Heater Height (Including Telescopic Air Intake) |
73" - 95" (1850-2450 mm) |
|
Heater Weight |
147 lbs (67 kg) |
|
Shipping Weight with Stones |
345 lbs (156.5 kg) |
|

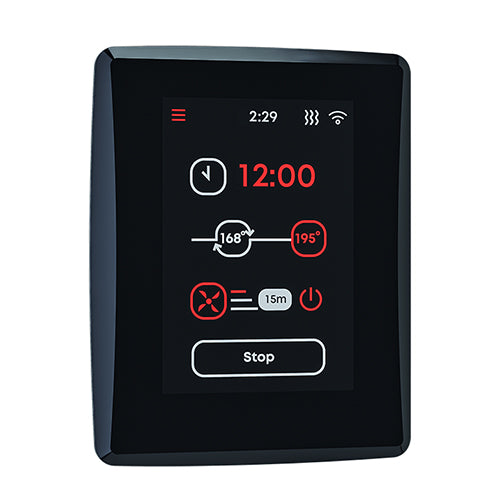

Display Panel |
|
|
Model |
AIRIQ WI-FI |
|
Certification/Global Safety Rating |
UL (Underwriters Laboratories) |
|
Type |
Digital, Soft-Touch |
|
Response |
Tactile with Haptic Feedback Technology |
|
Language Selection |
16-Languages |
|
Wi-Fi Capability |
Wi-Fi, App-Based Updates, and Operation |
|
Notifications |
Sauna is Ready, Heater Status, Open Door, and Overheating Protection |
|
Safety Features |
Admin, Screen Lock, Door Sensor, and Overheating Protection |
|
Color |
Nordic Black |
|
Heat Equalizing Control |
3-Speed Adjustability |
|
Width |
3.3" (83.82mm) |
|
Depth |
.8" (20.32mm) |
|
Height |
4.1" (104.14mm) |
|
IP Rating |
IP20 |
|
Minimum Temperature Setting |
104°F (40°C) |
|
Maximum Temperature Setting |
194°F (90°C) |
|
Duration Timer |
1 - 6 Hours |
|
Display Panel Cable |
4-Conductor Cable (150°C), 20AWG, 15' (475.2 cm) |
|
Door Sensor and Cable Assembly (Included with Heater) |
2-Conductor Cable (150°), 20AWG, 9.83' (299.62 cm) |
|
Door Sensor Probe |
1"L x .24"Diameter (25 x 6mm) |
|
Operating Temperature Range |
-4 - 145°F (-20 - 62°C) |
|
Programmability |
Weekly Scheduling with 3 Programmable Sessions |
|
Temperature Settings |
Fahrenheit or Celsius |
|
Region Settings |
North American and European Versions |
|
Room Temperature Sensor (Included with Heater) |
Pre-Mounted with Integrated Cable (150°C), 9.5' (289.56 cm) |
